Dual BNC Differential Adapter Kit for CT100B

Precision adapter for use with the high-resolution MOHR CT100B TDR Cable Analyzer

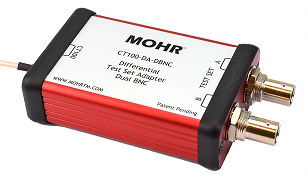

TRB Differential Adapter Kit

MOHR’s Differential TDR signal adapters redefine the limits of single-ended TDR’s by creating a high-resolution differential TDR signal that matches the systems under test. They allow for accurate, high-resolution impedance measurements in multi-conductor systems such as sensor networks, data bus harnesses, network and communications cables.

The CT100-DA-DBNC directly adapts to common test set harnesses found in standard military and civilian installations.


Dimensions

4.25(L) x 2.25(W) x 1.1(H) in.
(11 x 6 x 3 cm)


Weight

4 oz (110 g)


Datasheet

pdf icon Dual BNC Differential Adapter Kit Datasheet



Key Features

  • Adapts to Military and Commercial Vehicle Test Harnesses
  • Differential characterization of cable assemblies
  • Through-transformer measurement of MIL-STD-1553B Databus
  • Rapid analysis of compression damage and soft faults
  • Small, lightweight and rugged
  • Passive device, no additional power required

Specifications
Insertion Loss<1dB across operating range
Test ConnectorDual BNC (other types available)
Temperature-20C to +60C
Extension CableRG316 36” Coaxial BNCm to MMCXf
