MIL-STD-1553B Data Bus TRB Adapter Kit for TDR

Simplify Aging Aircraft Wiring Maintenance Using High-Resolution MOHR CT100 Series TDR Cable Analyzers

MIL-STD-1553B Databus TRB Adapter Kit

Key Features

  • Designed for use with the high-resolution CT100B TDR Cable Tester
  • Ideal for TDR testing MIL-STD-1553B data bus aerospace cable assemblies
  • Detect and localize open, short, and partial cable and connector faults on the main bus and stubs
  • Detects cable and connector faults through 3+ transformer couplers
  • Simplifies troubleshooting of aging aircraft MIL-STD-1553 cable assemblies

Datasheet


Application Notes

Key Specifications


    BNC

TRB

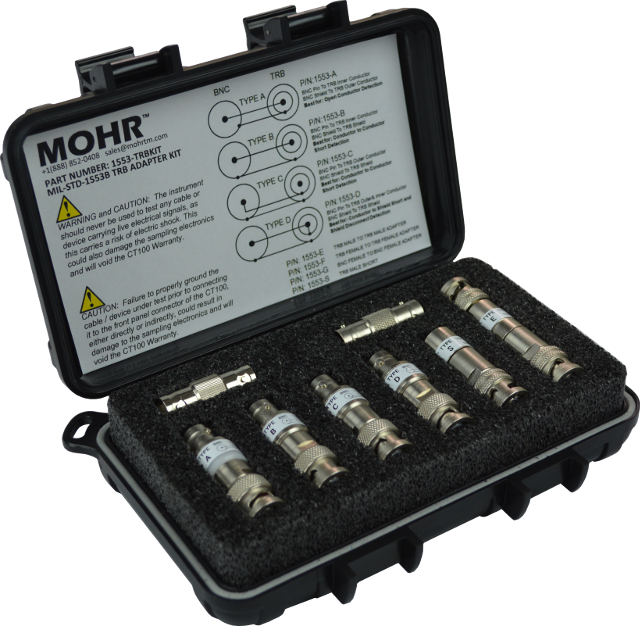

MIL-STD-1553B Databus TRB Adapter - P/N: 1553-A P/N: 1553-A
  • BNC Pin to TRB Inner Conductor
  • BNC Shield to TRB Outer Conductor
  • Best for open conductor and conductor-to-conductor short and partial fault detection
MIL-STD-1553B Databus TRB Adapter - P/N: 1553-B P/N: 1553-B
  • BNC Pin to TRB Inner Conductor
  • BNC Shield to TRB Shield
  • Best for individual conductor open, short, and partial fault detection
MIL-STD-1553B Databus TRB Adapter - P/N: 1553-C P/N: 1553-C
  • BNC Pin to TRB Outer Conductor
  • BNC Shield to TRB Shield
  • Best for individual conductor open, short, and partial fault detection
MIL-STD-1553B Databus TRB Adapter - P/N: 1553-D P/N: 1553-D
  • BNC Pin to TRB Inner & Outer Conductor
  • BNC Shield to TRB Shield
  • Best for conductor-to-shield short and shield fault detection

Dimensions

1.625(H) x 6.75(W) x 4.50(L) in.
(4.1 x 17.1 x 11.4 cm)


Weight

0.9 lbs. (410 g)


Regulatory


CE compliance logo Complies with all applicable EU directives, as specified by the Declaration of Conformity supplied with the instrument.

Adapter Case

  • MIL-STD-810F Transit Drop, Immersion Test
  • SAE J575 Dust Resistance Test
